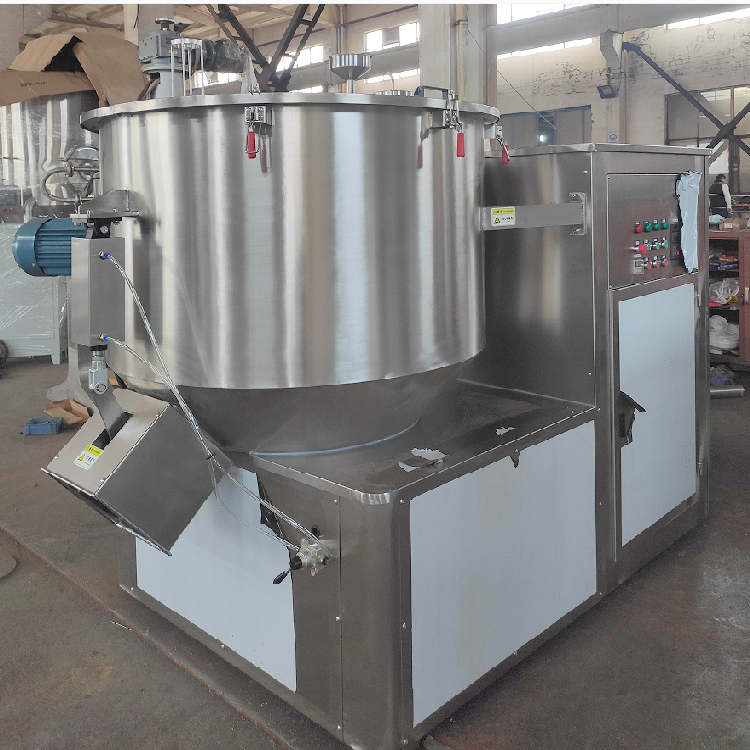

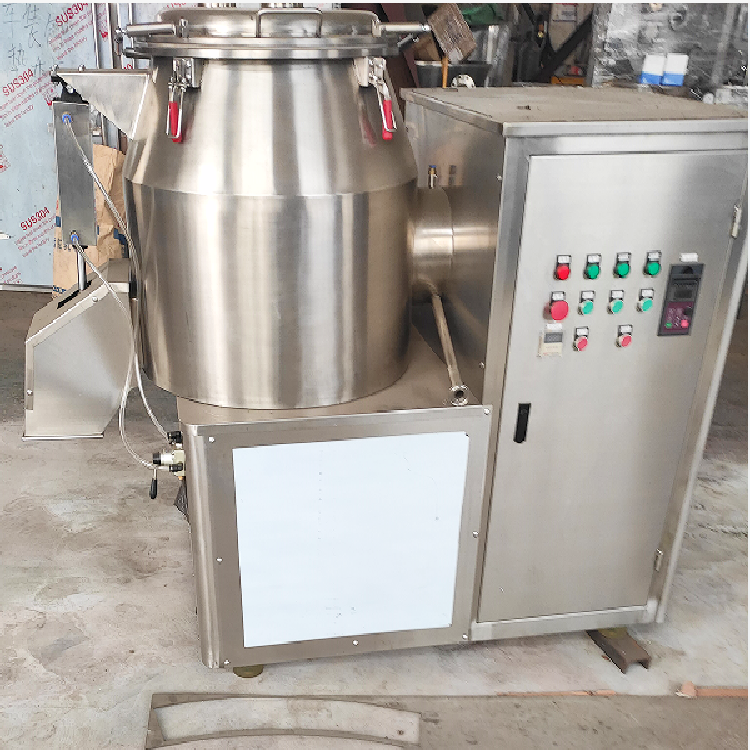

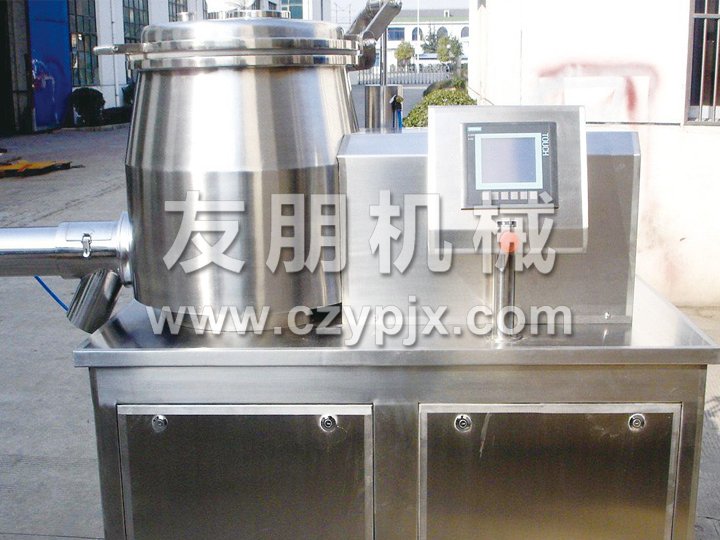

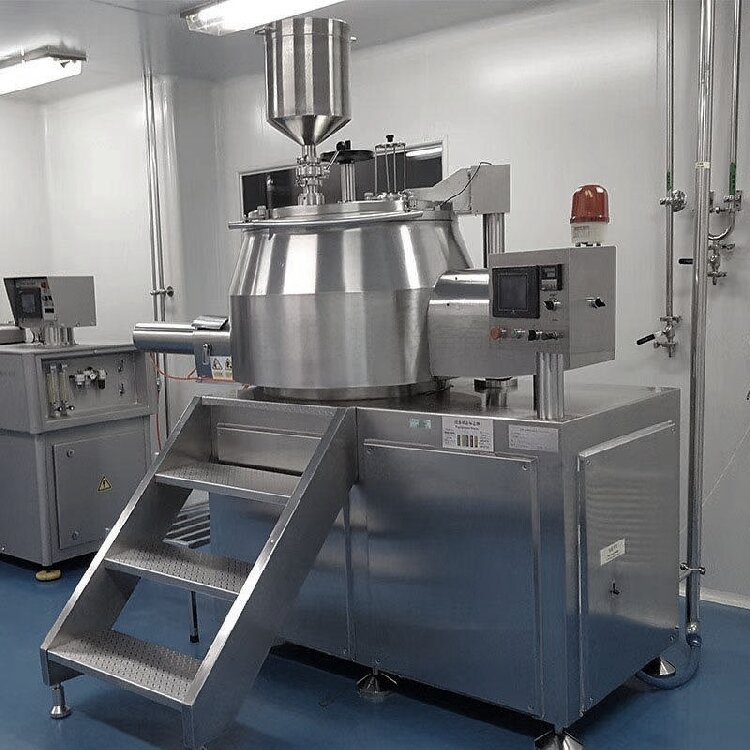

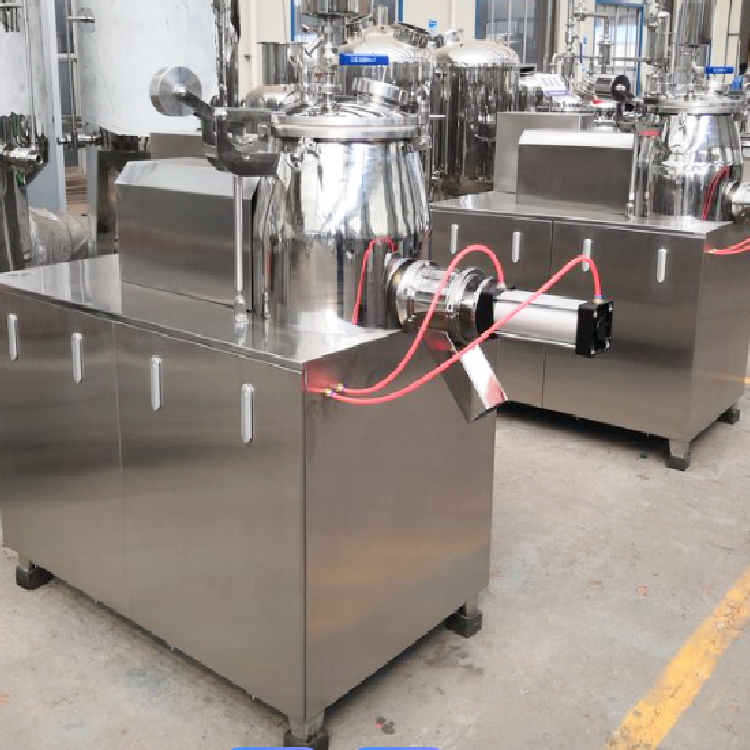

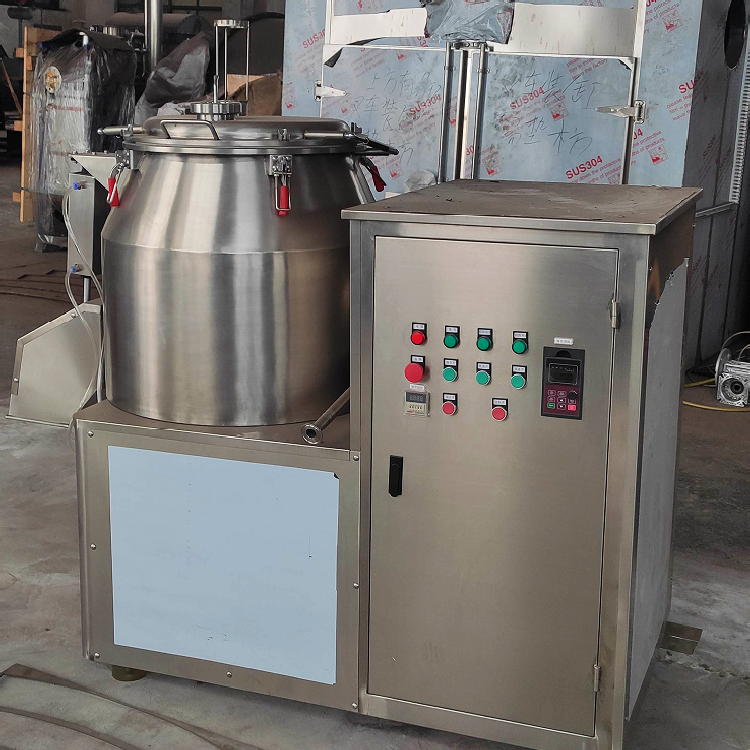

GHL series high-speed mixing granulator
GHL series high-speed mixing granulator
Products Categories
Featured Products
0102030405

GHL series high-speed mixing granulator

The GHL series high-speed mixing granulator is made by mixing powder materials and binders in a cylindrical container from the bottom into a wet soft material, which is then cut into uniform wet particles by a side mounted high-speed crushing blade.

    Contact us
    Details Information

    Working principle

    The powder material and adhesive are thoroughly mixed into a wet soft material in a cylindrical container through a bottom mixing slurry, and then cut into uniform wet particles by a high-speed grinding blade placed on the side.

    Performance characteristics

    ◆ This machine adopts a horizontal cylindrical structure with a reasonable structure.

    ◆ The inflatable sealed drive shaft can be switched to water during cleaning.

    ◆ Fluidized granulation, resulting in approximately spherical particles with good flowability.

    ◆ Reduce adhesive by 25% compared to traditional processes and shorten drying time.

    ◆ Each batch is only dry mixed for 2 minutes and pelletized for 1-4 minutes, which increases efficiency by 4-5 times compared to traditional processes.

    ◆ Completed in the same closed container, dry mixing wet mixing granulation process is shortened.

    ◆ The entire operation has strict safety protection measures.

    ◆ It can be made into a mezzanine type according to user requirements.

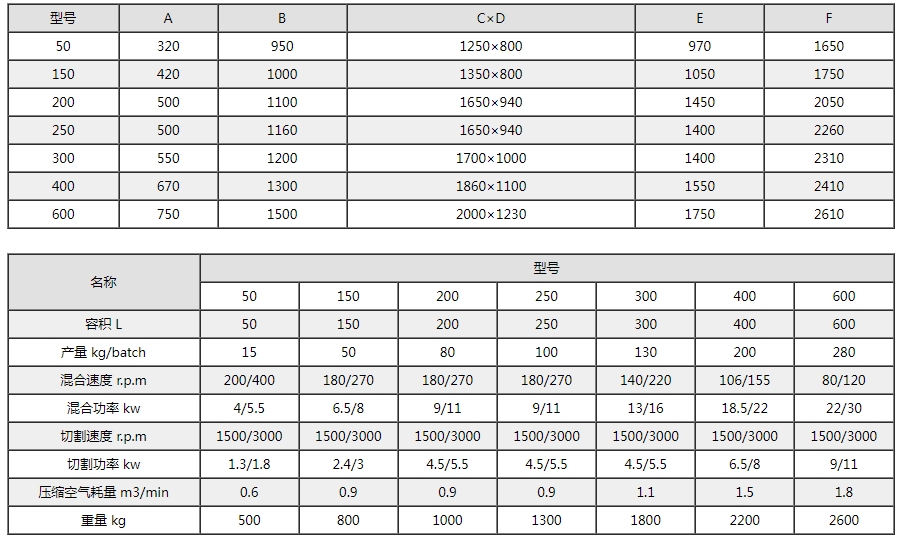

    Technical specifications



    Hot Tags: High-speed mixing machine High-speed mixing granulator Wet mixing granulator
